SSG

Steel
Thickness: 2"

Colour: 3 colours
3 layers, polystyrene sandwich door

Panel design: Light Grooves
R-8.7 insulation

IMPORTANT - These models are not available in Canada for now.

Features and benefits

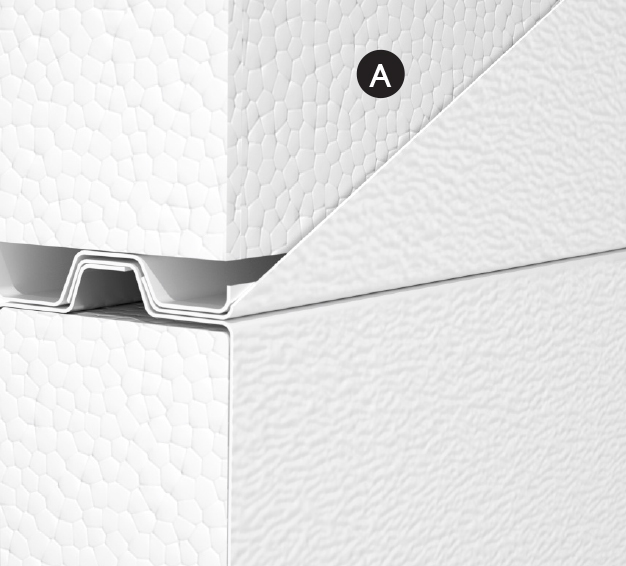

Polystyrene insulation

CFC-free contoured polystyrene core of our sections is bonded with polyurethane reactive hot melt glue to obtain energy efficiency.

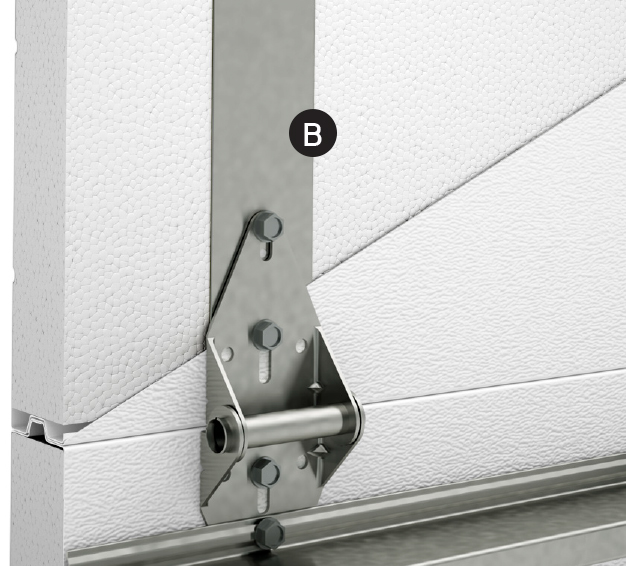

Full-length reinforcing plates

20-gauge hot dipped galvanized steel stiles running the full height of the section are attached to the interior face to ensure a more rigid section and also pre-punched with extruded holes for hinge attachment.

Choice of colours

Beautiful light groove design is available in a choice of 3 classic colours that fit well with many building exteriors.

Our technical department

We can provide budgetary pricing for your projects and your customers’ ones.

Get a Free Quote

Our technical department

We can provide budgetary pricing for your projects and your customers’ ones.

Get a Free Quote

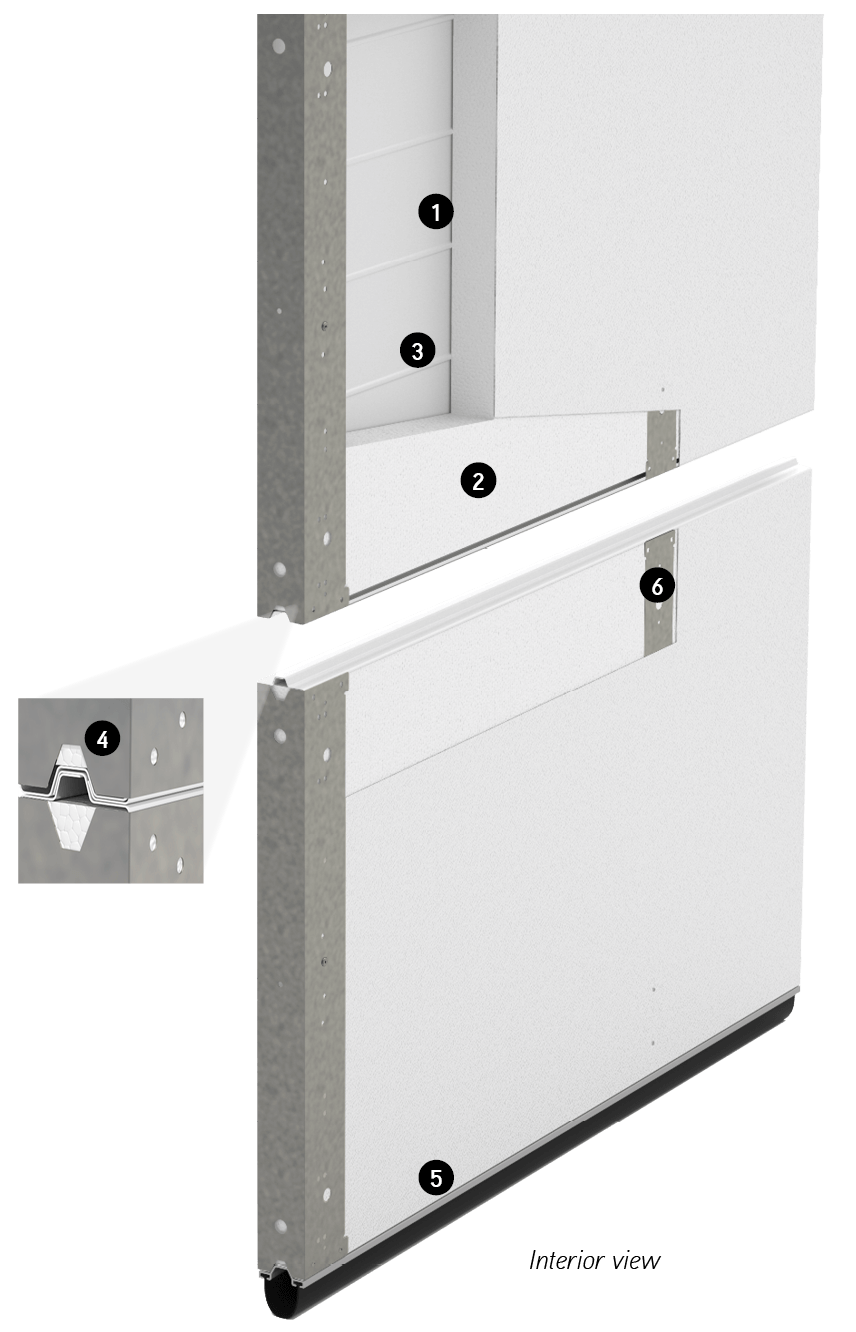

Panel construction

Hot-dipped galvanized steel walls

25-gauge exterior and 26-gauge interior steel skin
Baked-on polyester paint. Can be repainted
Woodgrain finish on exterior side and stucco finish on interior side of the door
Same quality of corrosion-resistant steel for interior and exterior faces
Door interior: regardless of the colour chosen, the inside is always White (door and window frames).

2” (50 mm) CFC-free continuous sculpted polystyrene board bonded between steel faces ensures a thermal-resistance rating of R‑8.7 (RSI 1.7 or k=0.558 W/m2K).

Sections are made with ¼” (6 mm) wide grooves for a subtle finish.

Tongue & groove joints between sections that fit seamlessly.

Continuous astragal bottom weatherstripping made of U‑shaped flexible vinyl and held in place by an aluminum retainer provides additional reinforcement.

20-gauge full-length galvanized steel reinforcing plates placed inside the door provide a rock solid base for attaching hinges and struts.

Door weight: 1.98 lb/ft² (9.7 kg/m²)

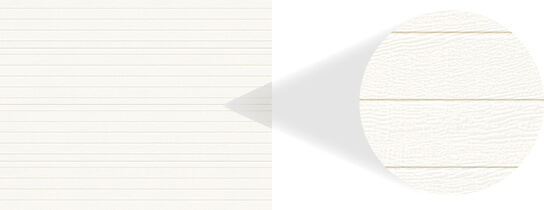

Panel design

Light Grooves
1⁄16” deep, 1⁄4” wide

Sizes

Widths

In 1" (25 mm) increments

From 5' to 20'2"

(1.5 m to 6.1 m)

Heights

In 3" (76 mm) increments

From 6' to 18'

(1.8 m to 5.5 m)

Sizes

Widths

In 1" (25 mm) increments

From 5' to 20'2"

(1.5 m to 6.1 m)

Heights

In 3" (76 mm) increments

From 6' to 18'

(1.8 m to 5.5 m)

Warranty (limited)

10 years against any perforation of steel due to rust
1 year on other door components

Colours

White

Brown

Black Ice

The accuracy of colours on the website may vary depending on your screen settings. To see the true colours, please contact your local Garaga dealer for a sample.
